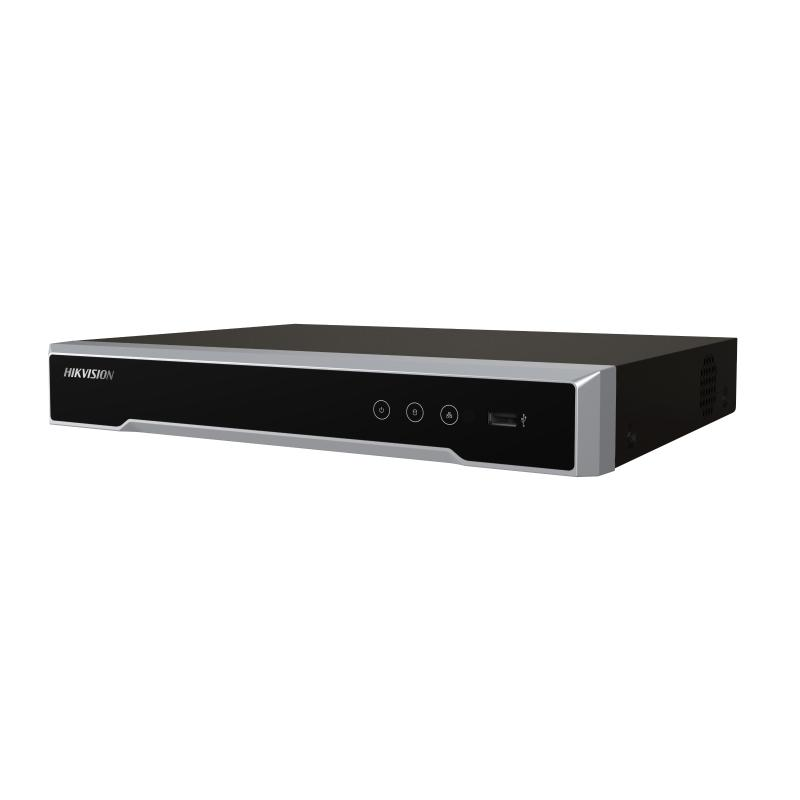

4-ch 1U 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 4-ch IP camera inputs
  • Up to 4-ch@8 MP decoding capacity
  • Up to 40 Mbps incoming bandwidth

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7604NI-M1/4P
DS-7604NI-M1/4P-2T
DS-7604NI-M1/4P-4T
DS-7604NI-M1/4P#AUS
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch Up to 32 MP resolution
  • Incoming Bandwidth40Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
  • VGA Output1920 × 1080/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS OutputNA
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Dual-Stream RecordingSupport
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Decoding Capability4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback4-ch
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 60 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interfaces
  • CapacityUp to 16 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • General
  • Power Supply48 VDC, 1.875 A
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320× 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1.2 kg (without HDD, 2.6 lb.)
  • Certification
  • CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch Up to 32 MP resolution
Incoming Bandwidth
40Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
VGA Output
1920 × 1080/60 Hz
Video Output Mode
HDMI/VGA independent output
CVBS Output
NA
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Dual-Stream Recording
Support
Decoding Format
H.265+/H.265/H.264+/H.264
Decoding Capability
4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Synchronous Playback
4-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 60 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
1 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Alarm In/Out
4/1
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply
48 VDC, 1.875 A
Consumption
≤ 15 W (without HDD and PoE off)
Working Temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
320× 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight
≤ 1.2 kg (without HDD, 2.6 lb.)
Certification
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch Up to 32 MP resolution
  • Incoming Bandwidth40Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
  • VGA Output1920 × 1080/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS OutputNA
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
  • Dual-Stream RecordingSupport
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Decoding Capability4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback4-ch
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 60 W
  • StandardIEEE 802.3 af/at
Auxiliary Interface
  • SATA1 SATA interfaces
  • CapacityUp to 16 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
  • Power Supply48 VDC, 1.875 A
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320× 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1.2 kg (without HDD, 2.6 lb.)
Certification
  • CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
