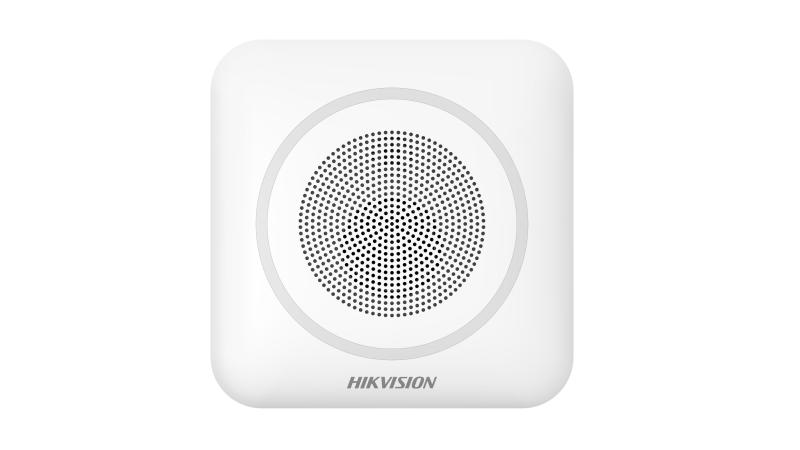

DS-PS1-II-WB


    Wireless Intercom Sounder

    • 433 MHz two-way wireless communication
    • Configurable arming/disarming prompt sound and LED indicator
    • Two-way talk via RF transmission
    • Buzzer Decibel: 90 to 110 dB
    • Long battery life span
    • 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
    • Fully remote configurable through App
    • Multiple enrollment methods and easy installation design
    View Less
    View more

    Available models:

    DS-PS1-II-WB
    DS-PS1-II-WB

    Specification

    • Hardware features
    • Serial port1
    • Tamper-ProofSupported, front and rear
    • BuzzerSupported
    • Power switchPower on/off
    • MicSupported
    • Electrical characteristics
    • Operation humidity10% to 90% (no condensing)
    • Operation temperature–10°C~55°C
    • Battery typeFour CR123 batteries
    • Power supplySupport 12VDC Power Supply
    • Power interface12VDC
    • Power consumptionQuiescent current: 25 uA Max current: 1.6 A Voltage: 3 V
    • Battery life spanUp to 2 years (standby time)
    • Wireless transmission
    • RF frequency433 MHz
    • RF modulation2GFSK
    • RF distance800m (open area)
    • Wireless technologyCAM-X Wireless Technology
    • Display
    • LED IndicatorEnrollment/Signal (red/green), Alarm(Blue/Red), Two-way audio service(Blue/Red)
    • General
    • Dimension(WxHxD)130 × 128 × 39.5 mm
    • ColorWhite Case (Blue or Red LED Alarm)
    • Installation methodWall mounting
    • Weight361.0 g
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Hardware features
    Serial port
    1
    Tamper-Proof
    Supported, front and rear
    Buzzer
    Supported
    Power switch
    Power on/off
    Mic
    Supported
    Electrical characteristics
    Operation humidity
    10% to 90% (no condensing)
    Operation temperature
    –10°C~55°C
    Battery type
    Four CR123 batteries
    Power supply
    Support 12VDC Power Supply
    Power interface
    12VDC
    Power consumption
    Quiescent current: 25 uA Max current: 1.6 A Voltage: 3 V
    Battery life span
    Up to 2 years (standby time)
    Wireless transmission
    RF frequency
    433 MHz
    RF modulation
    2GFSK
    RF distance
    800m (open area)
    Wireless technology
    CAM-X Wireless Technology
    Display
    LED Indicator
    Enrollment/Signal (red/green), Alarm(Blue/Red), Two-way audio service(Blue/Red)
    General
    Dimension(WxHxD)
    130 × 128 × 39.5 mm
    Color
    White Case (Blue or Red LED Alarm)
    Installation method
    Wall mounting
    Weight
    361.0 g
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Hardware features
    • Serial port1
    • Tamper-ProofSupported, front and rear
    • BuzzerSupported
    • Power switchPower on/off
    • MicSupported
    Electrical characteristics
    • Operation humidity10% to 90% (no condensing)
    • Operation temperature–10°C~55°C
    • Battery typeFour CR123 batteries
    • Power supplySupport 12VDC Power Supply
    • Power interface12VDC
    • Power consumptionQuiescent current: 25 uA Max current: 1.6 A Voltage: 3 V
    • Battery life spanUp to 2 years (standby time)
    Wireless transmission
    • RF frequency433 MHz
    • RF modulation2GFSK
    • RF distance800m (open area)
    • Wireless technologyCAM-X Wireless Technology
    Display
    • LED IndicatorEnrollment/Signal (red/green), Alarm(Blue/Red), Two-way audio service(Blue/Red)
    General
    • Dimension(WxHxD)130 × 128 × 39.5 mm
    • ColorWhite Case (Blue or Red LED Alarm)
    • Installation methodWall mounting
    • Weight361.0 g
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
