NEW

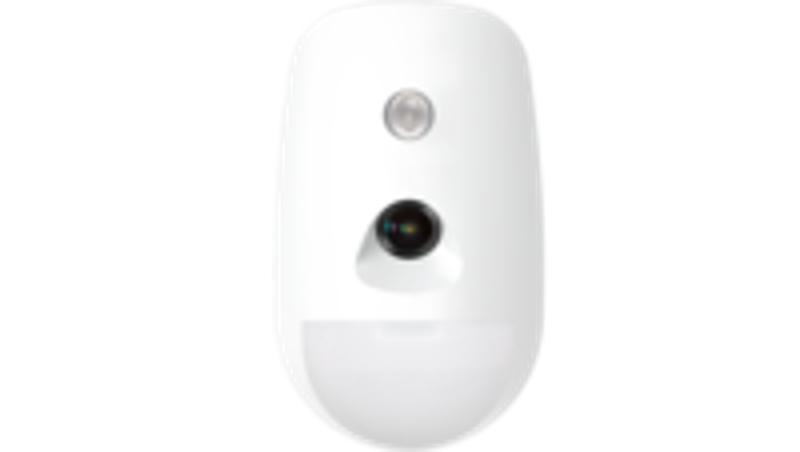

Wireless PIR-Camera Detector

  • Detection range: 12m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • 24/7 colorful imaging
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
View Less
View more
DS-PDPC12PF-EG2-WB(B)
DS-PDPC12PF-EG2-WB(B)/Blcak
Sales Inquiry
Data Sheet

Available models:

DS-PDPC12PF-EG2-WB(B)

Available models:

DS-PDPC12PF-EG2-WB(B)
DS-PDPC12PF-EG2-WB(B) NEW
Sales Inquiry

Specification

  • Detection Performance
  • Detection Method Passive Infrared;Video Verification
  • Detection Range 12m
  • Detection Angle 90°
  • Detection Zones 52
  • Detectable Speed 0.3～2m/s
  • Sensitivity High;Auto;Pet
  • Pet Immunity 30Kg
  • White Light Filter 6500lux
  • Digital Temperature Compensation Support
  • Creep Zone Protection Support
  • Feature
  • Digital Processing Support
  • Sealed Optics Support
  • Tamper Protection Front;Rear
  • Environment Temperature Indicator Support
  • Signal Strength Indicator Support
  • Video
  • Field Angle 88.4°(H), 54.0°(V)
  • Image Type JPEG
  • Resolusion 160*120;320*240;640*480
  • Fill Light White Light
  • Fill Range 12m
  • Day/Night Switch Color
  • Interface
  • Power Switch Power Up Enrolling
  • LED Indicator Blue(Alarm)
  • Transmission
  • Transmission Technology CAM-X Wireless
  • Transmission Method Two-Way RF Wireless
  • Transmission Frequency 433MHz
  • Transmission Security AES-128 Encryption
  • Transmission Range(Free Space) 800m
  • Enrolling Method Power up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery Life Up to 6 years (standby time)
  • Power Supply Battery Powered
  • Battery Type CR123A × 3
  • Typical Voltage 3V
  • General
  • Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity 10% to 90%
  • Dimension(WxHxD) 72.2mm × 120.5mm × 56.7mm
  • Weight 220g
  • Mounting Height 1.8 to 2.4m
  • Mounting Method Wall
  • Application Scenario Indoor
  • Bracket Optional Wall & Ceiling Accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Passive Infrared;Video Verification
Detection Range
12m
Detection Angle
90°
Detection Zones
52
Detectable Speed
0.3～2m/s
Sensitivity
High;Auto;Pet
Pet Immunity
30Kg
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Video
Field Angle
88.4°(H), 54.0°(V)
Image Type
JPEG
Resolusion
160*120;320*240;640*480
Fill Light
White Light
Fill Range
12m
Day/Night Switch
Color
Interface
Power Switch
Power Up Enrolling
LED Indicator
Blue(Alarm)
Transmission
Transmission Technology
CAM-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
433MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
800m
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 6 years (standby time)
Power Supply
Battery Powered
Battery Type
CR123A × 3
Typical Voltage
3V
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
72.2mm × 120.5mm × 56.7mm
Weight
220g
Mounting Height
1.8 to 2.4m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional Wall & Ceiling Accessory
For better user experience, we highly recommend you to update your device to the latest firmware asap.
