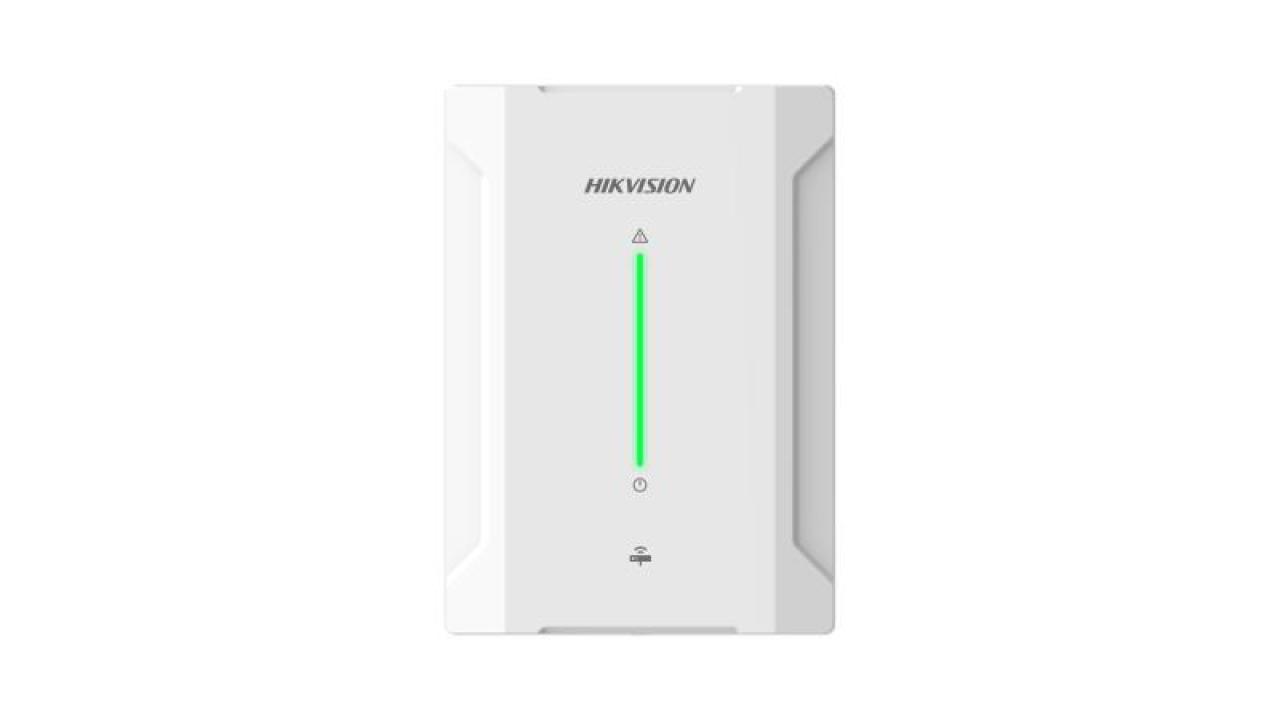

Tri-X Wireless Receiver

  • 433MHz wireless receiver
  • Wireless transmission distance up to 1300m
  • Supports 32 wireless detectors，8 wireless indoor sounders and 4 wireless outdoor sounders
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PM1-RT-HWB
DS-PM1-RT-HWB
DS-PM1-RT-HWB
Data Sheet

Specification

  • Software features
  • Compatibility listDS-PS1-I-WB DS-PS1-E-WB DS-PM1-O1L-WB DS-PM1-O1H-WB DS-PDP15P-EG2-WB DS-PDC15-EG2-WB DS-PDD12P-EG2-WB DS-PDMC-EG2-WB DS-PDMCS-EG2-WB DS-PDEB1-EG2-WB DS-PDEBP1-EG2-WB DS-PDWL-E-WB DS-PDPG12P-EG2-WB DS-PDMCK-EG2-WB DS-PDTPH-E-WB DS-PDCL12-EG2-WB DS-PDC10AM-EG2-WB DS-PDC10DM-EGW-WB
  • Hardware features
  • Bus1 Speed-X bus
  • Electrical characteristics
  • Power supply 9 to 24 VDC
  • Typical voltage12 VDC
  • Power consumptionMaximum current: 100 mA@12 VDC Quiescent current: 40 mA@12 VDC
  • Wireless transmission
  • RF frequency433 MHz
  • Wireless securityFrequency hoping 128 AES encryption
  • Display
  • LED Indicator1. Green: power/find me 2. Orange: alarm/fault
  • General
  • Dimension(WxHxD)110 mm × 155 mm × 32 mm
  • Shell materialPlastic
  • Weight233 g
  • Operation temperature-10°C to 40°C
  • Operation humidity 10% to 90%
  • Device management
  • Alarm inputUp to 32 wireless detectors(portable emergency button is not included)
  • Wireless sounderUp to 8 wireless indoor sounder, 4 wireless outdoor sounder
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Compatibility list
DS-PS1-I-WB DS-PS1-E-WB DS-PM1-O1L-WB DS-PM1-O1H-WB DS-PDP15P-EG2-WB DS-PDC15-EG2-WB DS-PDD12P-EG2-WB DS-PDMC-EG2-WB DS-PDMCS-EG2-WB DS-PDEB1-EG2-WB DS-PDEBP1-EG2-WB DS-PDWL-E-WB DS-PDPG12P-EG2-WB DS-PDMCK-EG2-WB DS-PDTPH-E-WB DS-PDCL12-EG2-WB DS-PDC10AM-EG2-WB DS-PDC10DM-EGW-WB
Hardware features
Bus
1 Speed-X bus
Electrical characteristics
Power supply
9 to 24 VDC
Typical voltage
12 VDC
Power consumption
Maximum current: 100 mA@12 VDC Quiescent current: 40 mA@12 VDC
Wireless transmission
RF frequency
433 MHz
Wireless security
Frequency hoping 128 AES encryption
Display
LED Indicator
1. Green: power/find me 2. Orange: alarm/fault
General
Dimension(WxHxD)
110 mm × 155 mm × 32 mm
Shell material
Plastic
Weight
233 g
Operation temperature
-10°C to 40°C
Operation humidity
10% to 90%
Device management
Alarm input
Up to 32 wireless detectors(portable emergency button is not included)
Wireless sounder
Up to 8 wireless indoor sounder, 4 wireless outdoor sounder
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Software features
  • Compatibility listDS-PS1-I-WB DS-PS1-E-WB DS-PM1-O1L-WB DS-PM1-O1H-WB DS-PDP15P-EG2-WB DS-PDC15-EG2-WB DS-PDD12P-EG2-WB DS-PDMC-EG2-WB DS-PDMCS-EG2-WB DS-PDEB1-EG2-WB DS-PDEBP1-EG2-WB DS-PDWL-E-WB DS-PDPG12P-EG2-WB DS-PDMCK-EG2-WB DS-PDTPH-E-WB DS-PDCL12-EG2-WB DS-PDC10AM-EG2-WB DS-PDC10DM-EGW-WB
Hardware features
  • Bus1 Speed-X bus
Electrical characteristics
  • Power supply 9 to 24 VDC
  • Typical voltage12 VDC
  • Power consumptionMaximum current: 100 mA@12 VDC Quiescent current: 40 mA@12 VDC
Wireless transmission
  • RF frequency433 MHz
  • Wireless securityFrequency hoping 128 AES encryption
Display
  • LED Indicator1. Green: power/find me 2. Orange: alarm/fault
General
  • Dimension(WxHxD)110 mm × 155 mm × 32 mm
  • Shell materialPlastic
  • Weight233 g
  • Operation temperature-10°C to 40°C
  • Operation humidity 10% to 90%
Device management
  • Alarm inputUp to 32 wireless detectors(portable emergency button is not included)
  • Wireless sounderUp to 8 wireless indoor sounder, 4 wireless outdoor sounder
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
