Card Reader

  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
  • Build-in EM card reading module (Frequency:125KHz).
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader

Available models:

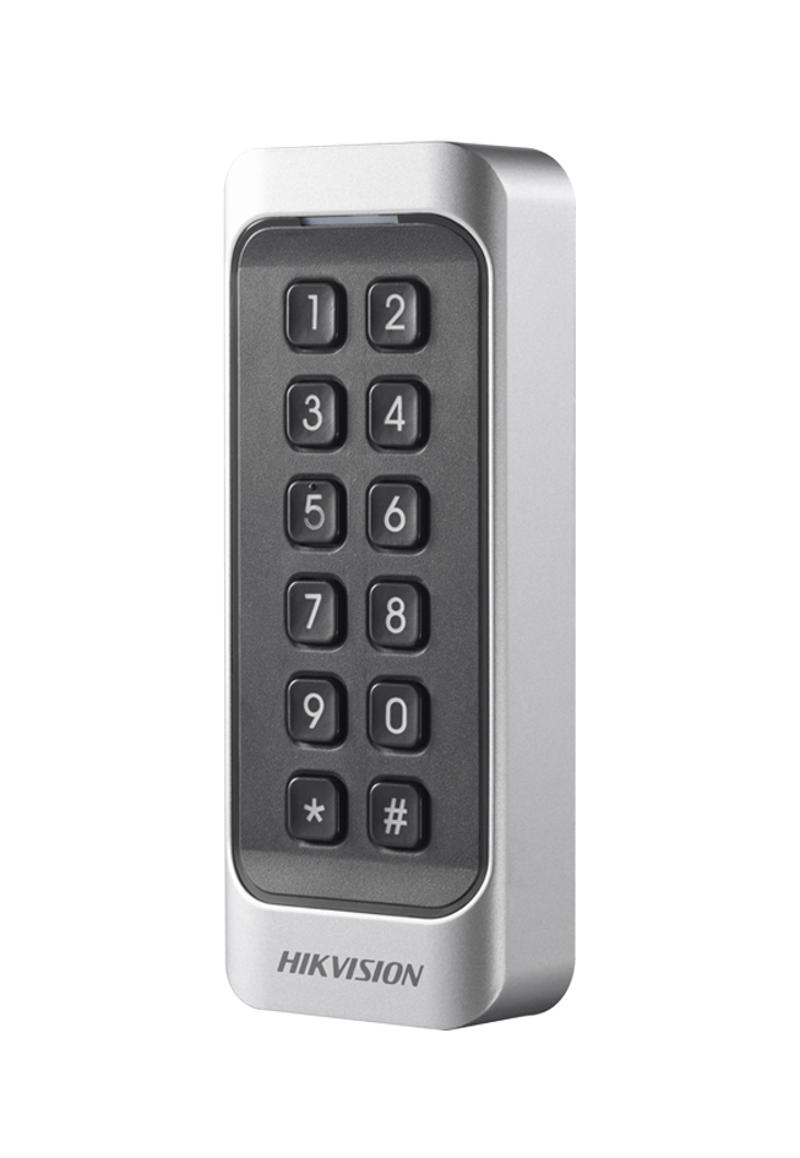

DS-K1107AEK

Specification

  • System
  • Processor32-bit
  • Interface
  • TAMPERSupport
  • RS-485Support
  • WiegandSupport (set via DIP switch)
  • Authentication
  • Card reading frequency125 KHz
  • Card reading distance≤50 mm (≤1.97")
  • General
  • IndicatorPower indicator, status indicator
  • Power supply12 VDC
  • Power consumption≤2 W
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity10% to 90% (Non Condensing)
  • Protective levelIP65
  • Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
  • InstallationWall Mounting with Screws; Do Not Support Gang Box
  • KeypadKeypad with 12 Keys (0~9, *, #)
  • BuzzerSupport

Specification

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
