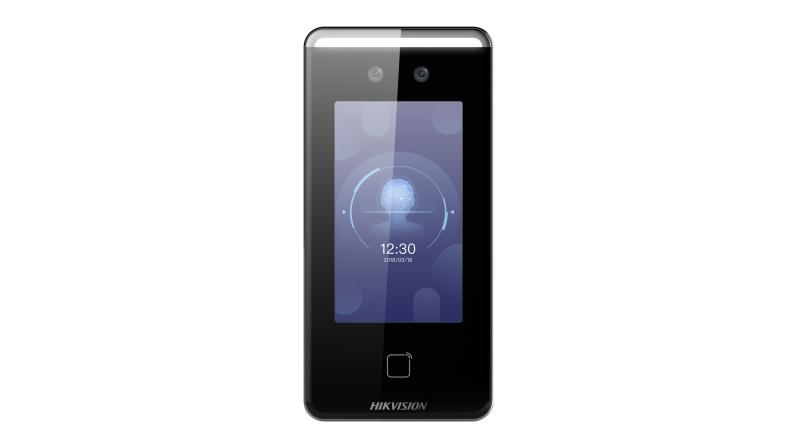

Value Series Face Access Terminal

  • Deep learning algorithm
  • 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
  • 3,000 face capacity, 3,000 card capacity, and 150,000 event capacity
  • Multiple authentication modes, including face, and card, etc.
  • Face recognition duration < 0.2 s/User
  • Supports mask wearing detection
  • Connects to external access controller or Wiegand card reader via Wiegand protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
  • Two-way audio with client software, door station, indoor station, and main station
View Less
View more

Available models:

DS-K1T341CMW

Specification

  • System
  • Operating systemLinux
  • Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • Resolution272 × 480
  • Video
  • Lens2
  • Resolution2 MP (video stream: 720P)
  • Video standardPAL (Default) and NTSC
  • Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851
  • Wiegand1
  • USB1
  • Capacity
  • Face capacity3,000
  • Card capacity3,000
  • Event capacity150,000
  • Authentication
  • Face recognition distance> 2 m
  • Face recognition duration< 0.2 s
  • Card typeM1 card
  • General
  • Built-in access controllerYes
  • Power supply2 A (DC 12 V ~ DC 24 V）
  • Power consumption≤ 10 W
  • Working temperature-30 ℃ ~ ＋60 ℃ (-22 °F ~ +140 °F )
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
  • Function
  • Live viewSupport
  • Face anti-spoofingSupport
  • Hik-ConnectSupport
  • Audio promptSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operating system
Linux
Display
Screen size
4.3 inch
Operation method
Capacitive touch screen
Resolution
272 × 480
Video
Lens
2
Resolution
2 MP (video stream: 720P)
Video standard
PAL (Default) and NTSC
Network
Wired network
10 M/100 M self-adaptive
Wi-Fi
Support
Interface
Network interface
1
Lock control
1
Exit button
1
Door contact input
1
TAMPER
1
RS-485
1
Wiegand
1
USB
1
Capacity
Face capacity
3,000
Card capacity
3,000
Event capacity
150,000
Authentication
Face recognition distance
> 2 m
Face recognition duration
< 0.2 s
Card type
M1 card
General
Built-in access controller
Yes
Power supply
2 A (DC 12 V ~ DC 24 V）
Power consumption
≤ 10 W
Working temperature
-30 ℃ ~ ＋60 ℃ (-22 °F ~ +140 °F )
Protective level
IP65
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Function
Live view
Support
Face anti-spoofing
Support
Hik-Connect
Support
Audio prompt
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operating systemLinux
Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • Resolution272 × 480
Video
  • Lens2
  • Resolution2 MP (video stream: 720P)
  • Video standardPAL (Default) and NTSC
Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851
  • Wiegand1
  • USB1
Capacity
  • Face capacity3,000
  • Card capacity3,000
  • Event capacity150,000
Authentication
  • Face recognition distance> 2 m
  • Face recognition duration< 0.2 s
  • Card typeM1 card
General
  • Built-in access controllerYes
  • Power supply2 A (DC 12 V ~ DC 24 V）
  • Power consumption≤ 10 W
  • Working temperature-30 ℃ ~ ＋60 ℃ (-22 °F ~ +140 °F )
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Function
  • Live viewSupport
  • Face anti-spoofingSupport
  • Hik-ConnectSupport
  • Audio promptSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Firmware
Firmware_V3.3.15_230901
Applied to:
DS-K1T341CMW
For better user experience, we highly recommend you to update your device to the latest firmware asap.
