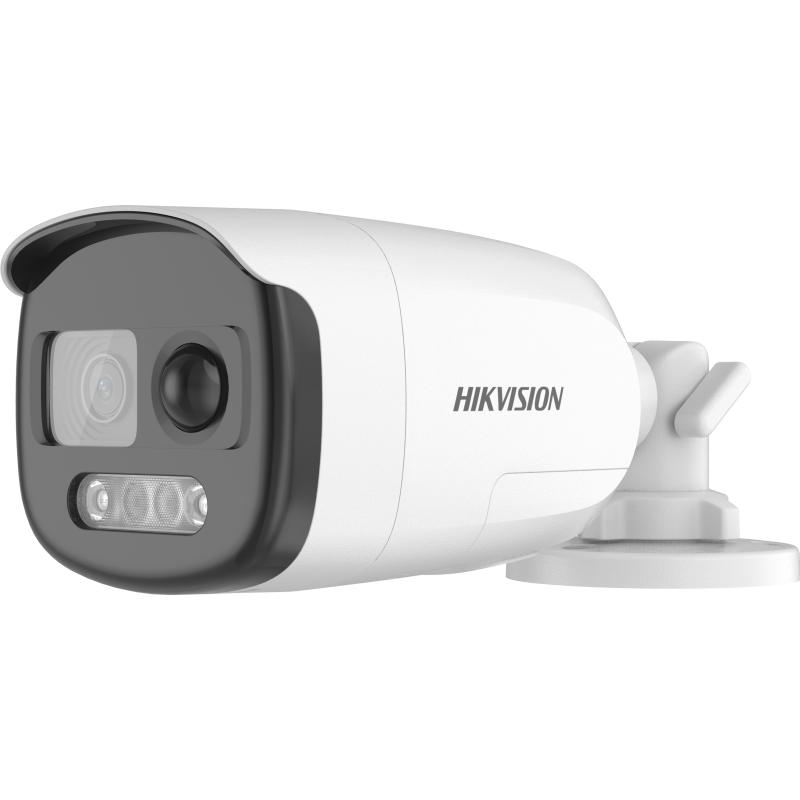

2 MP PIR Siren Fixed Bullet Camera

  • 2 MP PIR siren bullet camera
  • PIR detection, red and blue flashlight alarm, audio alarm and alarm out to warn off intruders in real time
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
View Less
View more

Available models:

DS-2CE12D0T-PIRXF(2.8mm)
DS-2CE12D0T-PIRXF(3.6mm)
DS-2CE12D0T-PIRXF(6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotate 0 to 360°
  • Signal SystemPAL/NTSC
  • Light AlarmYes
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 81°, vertical FOV: 43°, diagonal FOV: 96° 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@25fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialEnclosure: Plastic Main Body: Metal
  • Dimension77.1 mm × 82.6 mm × 208.9 mm (3.04" × 3.25" × 8.22")
  • WeightApprox. 439 g ( 0.97 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 6.6 W
  • IR RangeUp to 40 m
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotate 0 to 360°
  • Signal SystemPAL/NTSC
  • Light AlarmYes
Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 81°, vertical FOV: 43°, diagonal FOV: 96° 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
  • Lens MountM12
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@25fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • MaterialEnclosure: Plastic Main Body: Metal
  • Dimension77.1 mm × 82.6 mm × 208.9 mm (3.04" × 3.25" × 8.22")
  • WeightApprox. 439 g ( 0.97 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 6.6 W
  • IR RangeUp to 40 m
Approval
  • ProtectionIP67
