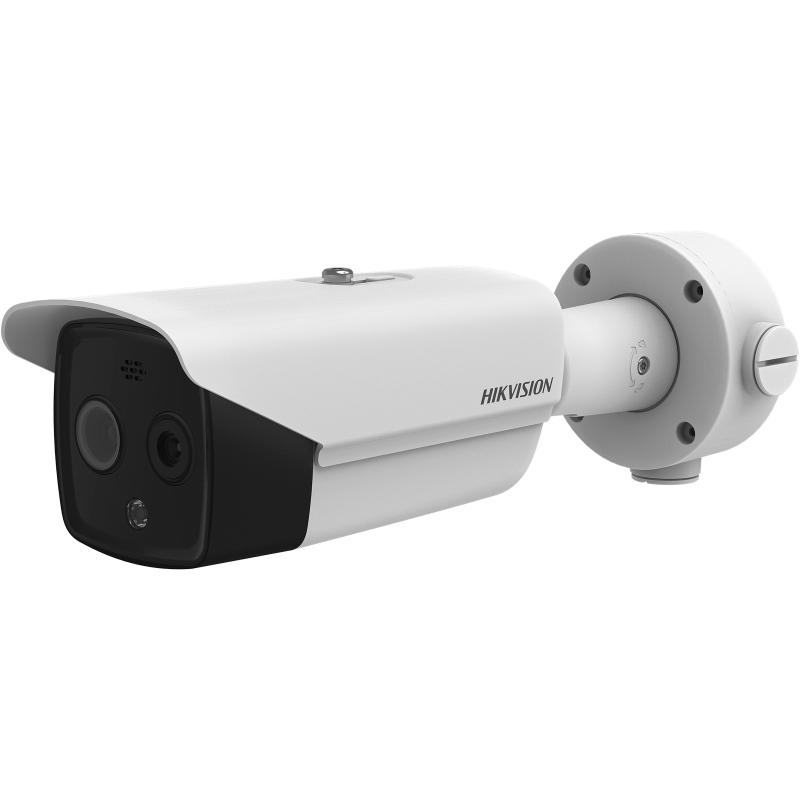

Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
High accuracy temperature exception alarm, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Fire detection algorithm

View Less

Available models:

DS-2TD2617T-3/PA

EOL

Specification
Resources
Accessories

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution160 × 120
Pixel Pitch17 μm
Spectral Range8 μm to 14 μm
NETD< 40 mK (@ 25°C, F#=1.1)
Focal Length3.1 mm
IFOV5.48 mrad
Field of View50° × 37.2° (H × V)
Min. Focusing Distance0.2 m
ApertureF 1.1
Digital Zoom×2, ×4

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed1s to 1/100,000s
Focal Length4 mm
Field of View84° × 44.8°(H × V)
Aperture (Range)F 2.3
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator
IR DistanceUp to 15 m
IR Intensity and AngleAutomatically adjusted

Audible and Visual Alarm
White Light RangeUp to 30 m
Visual AlarmYes. White light alarm with adjustable flashing frequencies
Audio alarmYes, for three types of audible alarm (VCA, Temperature, and Smoking Detection) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the three types)

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 550°C (-4°F to 1022°F);
Temperature AccuracyMax (±2°C, ±2 %)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-streamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, third-party management platform,
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input1, alarm input (0-5 VDC)
Alarm Output1, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear level, impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

General
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Working Temperature/HumidityTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
Protection LevelIP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight1.76 kg (3.88 lb)
