DS-MCW407

EOL

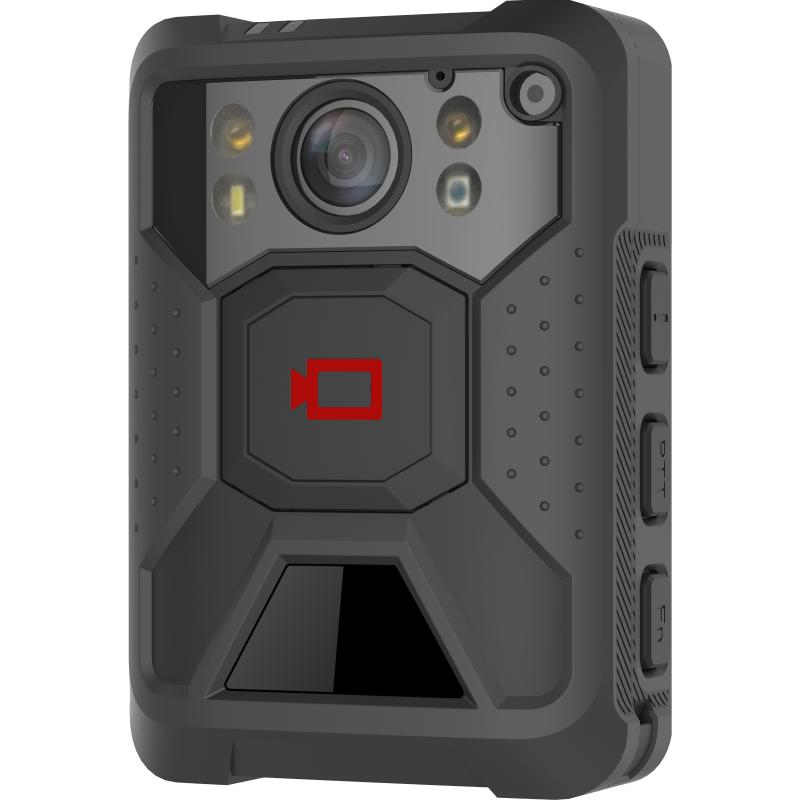

Ultra Series H265 Wi-Fi & 4G Body Camera

1080p HD recording.
The recorded videos can be uploaded to the central video platform via 4G wireless communication.
Dual positioning modules of GPS and Beidou. The location information can be uploaded to the command center in real time.
Supports IR night vision. Even in the dark scene, the facial features of the persons in the scene can be recognized clearly.
Tri-proof design to support all-weather filed operation.
Built-in battery with large capacity, supporting longer working hour.
Small size, light weight, and convenient to carry.
Large recording button for convenient operation.

View Less

Available models:

DS-MCW407/32G/GLE

DS-MCW407/32G/GPS/WIFI

Camera
Sensor Type1/3" CMOS

Screen
Screen Size2.0 inch
Resolution320 × 240
MaterialTFT

Lens
Lens Focal Length2.4 mm
Lens ApertureF2.2

Horizontal FOV125°
Day/Night SwitchIR cut filter with auto switch (You can see human face within 3 m at night.)
White BalanceAWB
Digital Zoom× 4

Video
Stream TypeMain stream;Sub-stream
Main Stream Resolution1920 × 1080;1280 × 720;720 × 576
Sub-Stream Resolution1280 × 720;720 × 576
Main Stream Frame Rate25 fps
Sub-Stream Frame Rate5 fps, 15 fps, 25 fps
Video CompressionH.264;H.265
Record Resolution720 × 576,1280 × 720,1920 × 1080
Image Resolution5M;16M;30M;40M
Image FormatJPEG

Audio
Audio CompressionG.722.1;PCM

Network and Connection
Dial-upFDD -LTE B1;FDD -LTE B3;FDD -LTE B8;WCDMA B1;WCDMA B8;GSM 900;GSM 1800;FDD -LTE B7;FDD -LTE B20
Wi-Fi Protocol802.11b;802.11g;802.11n
Wi-Fi Working ModeSTATION
Wi-Fi Frequency Range2.412 to 2.472 GHz
PositioningGPS;Beidou
Bluetooth4.0

General
Operating SystemLinux
Laser PositioningSupported
IndicatorCharging indicator;Working indicator
VibrationNot supported
ButtonOn/Off, Record, capture, tape, PTT, alarm, Fn, menu, up, down, OK
Product Weight159.5 g (0.4 lb.)
Product Dimension82.6 × 58 × 29 mm (3.3 × 2.3 × 1.1 inch)
Package Weight496 g (1.1 lb.)
Package Dimension188 × 136 × 70.5 mm (7.4 × 5.4 × 2.8 inch)
Ingress ProtectionIP68
Drop Protection PerformanceDrop it twice for each side (6 sides in total) from the height of 2 m on the cement ground.
Power Supply ModeBattery power supply
Working Temperature-20 ℃ to 55 ℃ (-4 °F to 131 °F)
Working Humidity≤ 90%

Light Supplement
IRSupported
White LightSupported

Storage
Embedded Storage CapacityMax. 256 GB

Peripheral Device Interface
Charging InterfaceMiniUSB
External InterfaceUSB 2.0
LoudspeakerSupported
MICSupported
SIM Card Slot1 (Nano-SIM)

Battery
Dismountable BatteryNot supported
Battery Capacity3,220 mAH
Battery Life for RecordRecordable not less than 11 hours in 1080p resolution

Specification

Camera

Sensor Type

1/3" CMOS

Screen

Screen Size

2.0 inch

Resolution

320 × 240

Material

TFT

Lens

Lens Focal Length

2.4 mm

Lens Aperture

F2.2


Horizontal FOV

125°

Day/Night Switch

IR cut filter with auto switch (You can see human face within 3 m at night.)

White Balance

AWB

Digital Zoom

× 4

Video

Stream Type

Main stream;Sub-stream

Main Stream Resolution

1920 × 1080;1280 × 720;720 × 576

Sub-Stream Resolution

1280 × 720;720 × 576

Main Stream Frame Rate

25 fps

Sub-Stream Frame Rate

5 fps, 15 fps, 25 fps

Video Compression

H.264;H.265

Record Resolution

720 × 576,1280 × 720,1920 × 1080

Image Resolution

5M;16M;30M;40M

Image Format

JPEG

Audio

Audio Compression

G.722.1;PCM

Network and Connection

Dial-up

FDD -LTE B1;FDD -LTE B3;FDD -LTE B8;WCDMA B1;WCDMA B8;GSM 900;GSM 1800;FDD -LTE B7;FDD -LTE B20

Wi-Fi Protocol

802.11b;802.11g;802.11n

Wi-Fi Working Mode

STATION

Wi-Fi Frequency Range

2.412 to 2.472 GHz

Positioning

GPS;Beidou

Bluetooth

4.0

General

Operating System

Linux

Laser Positioning

Supported

Indicator

Charging indicator;Working indicator

Vibration

Not supported

Button

On/Off, Record, capture, tape, PTT, alarm, Fn, menu, up, down, OK

Product Weight

159.5 g (0.4 lb.)

Product Dimension

82.6 × 58 × 29 mm (3.3 × 2.3 × 1.1 inch)

Package Weight

496 g (1.1 lb.)

Package Dimension

188 × 136 × 70.5 mm (7.4 × 5.4 × 2.8 inch)

Ingress Protection

IP68

Drop Protection Performance

Drop it twice for each side (6 sides in total) from the height of 2 m on the cement ground.

Power Supply Mode

Battery power supply

Working Temperature

-20 ℃ to 55 ℃ (-4 °F to 131 °F)

Working Humidity

≤ 90%

Light Supplement

IR

Supported

White Light

Supported

Storage

Embedded Storage Capacity

Max. 256 GB

Peripheral Device Interface

Charging Interface

MiniUSB

External Interface

USB 2.0

Loudspeaker

Supported

MIC

Supported

SIM Card Slot

1 (Nano-SIM)

Battery

Dismountable Battery

Not supported

Battery Capacity

3,220 mAH

Battery Life for Record

Recordable not less than 11 hours in 1080p resolution

Camera

Sensor Type1/3" CMOS

Screen

Screen Size2.0 inch
Resolution320 × 240
MaterialTFT

Lens

Lens Focal Length2.4 mm
Lens ApertureF2.2


Horizontal FOV125°
Day/Night SwitchIR cut filter with auto switch (You can see human face within 3 m at night.)
White BalanceAWB
Digital Zoom× 4

Video

Stream TypeMain stream;Sub-stream
Main Stream Resolution1920 × 1080;1280 × 720;720 × 576
Sub-Stream Resolution1280 × 720;720 × 576
Main Stream Frame Rate25 fps
Sub-Stream Frame Rate5 fps, 15 fps, 25 fps
Video CompressionH.264;H.265
Record Resolution720 × 576,1280 × 720,1920 × 1080
Image Resolution5M;16M;30M;40M
Image FormatJPEG

Audio

Audio CompressionG.722.1;PCM

Network and Connection

Dial-upFDD -LTE B1;FDD -LTE B3;FDD -LTE B8;WCDMA B1;WCDMA B8;GSM 900;GSM 1800;FDD -LTE B7;FDD -LTE B20
Wi-Fi Protocol802.11b;802.11g;802.11n
Wi-Fi Working ModeSTATION
Wi-Fi Frequency Range2.412 to 2.472 GHz
PositioningGPS;Beidou
Bluetooth4.0

General

Operating SystemLinux
Laser PositioningSupported
IndicatorCharging indicator;Working indicator
VibrationNot supported
ButtonOn/Off, Record, capture, tape, PTT, alarm, Fn, menu, up, down, OK
Product Weight159.5 g (0.4 lb.)
Product Dimension82.6 × 58 × 29 mm (3.3 × 2.3 × 1.1 inch)
Package Weight496 g (1.1 lb.)
Package Dimension188 × 136 × 70.5 mm (7.4 × 5.4 × 2.8 inch)
Ingress ProtectionIP68
Drop Protection PerformanceDrop it twice for each side (6 sides in total) from the height of 2 m on the cement ground.
Power Supply ModeBattery power supply
Working Temperature-20 ℃ to 55 ℃ (-4 °F to 131 °F)
Working Humidity≤ 90%
