Discontinued

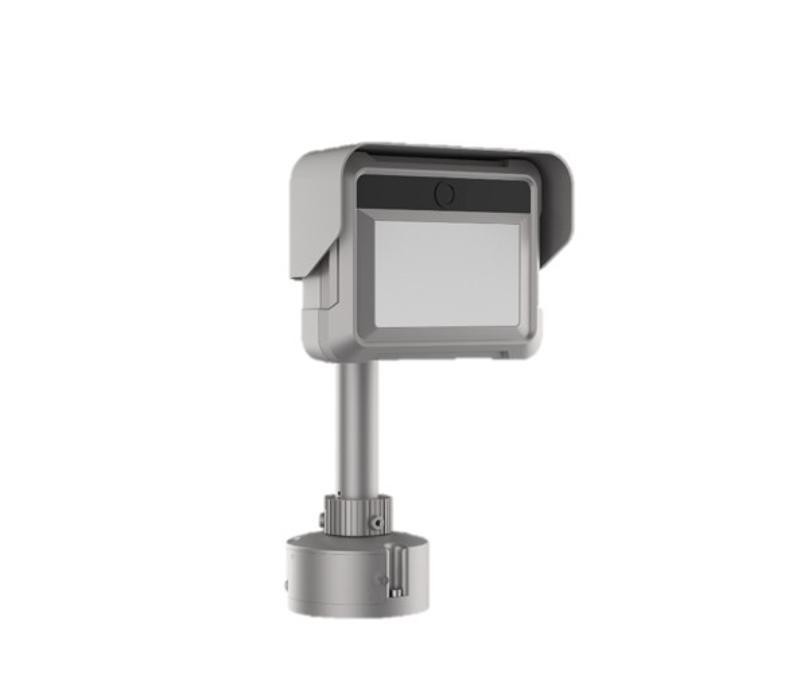

4 MP Radar and Video Vehicle Detector

  • Applicable to signal control system, traffic information service system, road traffic surveillance, etc.
  • Integrated with millimeter wave radar and 4 MP low illumination camera.
  • Multiple targets track detection and visualization in bi-directional 4 lanes with vertical coverage of 200 m.
  • All-weather workable, free of influences from rain, snow, fog, wind, dust, illumination, etc.
  • Embedded with deep learning algorithm, supporting smart recognition for license plate and target structuralization.
  • Information detection of multiple targets positions, lane, speed, direction, etc.
  • Multiple traffic data collection: statistics and uploading of different lanes, including data of traffic flow, speed, status, queue, time headway, space headway, number of parking vehicle in area, average delay, space occupancy, time occupancy, etc. in 1 to 3,600 s.
  • Traffic evaluation data output, including parking duration, parking times, and queue length.
  • Two virtual coils for each lane. Signal output of vehicle entering and exiting virtual coils. Positions of virtual coils are adjustable.
  • Defog, HLC, WDR, and multiple white balance modes, satisfying various scenes.
View Less
View more

Available models:

iDS-TCD402-BR/12
iDS-TCD402-BR Discontinued

Specification

  • Camera
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Storage
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card card, up to 512GB
  • Lens
  • Focal Length & FOV12 mm, horizontal FOV 38.3°, vertical FOV 21.4°, diagonal FOV 44.3°
  • Illuminator
  • External Supplement LightContinuous LED supplement light
  • Radar
  • Detection Distance200 m coverage in range of the scene
  • Speed Range0 to 200 km/h
  • Max. Detectable TargetsAble to track and detect max. 128 targets
  • Video
  • Main Stream 50 Hz: 25 fps (2688 × 1520, 19080 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub-Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 702 × 576, 352 × 288)
  • Video Compression H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • Network
  • ProtocolsTCP/IP, HTTP, DNS, RTP, RTSP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
  • Web BrowserIE9 to IE11
  • Image
  • Image SettingsWhite Balance (Auto)
  • Day/Night SwitchICR
  • Wide Dynamic Range (WDR)140 dB
  • Image Enhancement3D DNR
  • Interface
  • Video Output1-ch level output
  • Ethernet Interface2, RJ45 100M/1000M self-adaptive Ethernet interface
  • RS-4851
  • RS-2321
  • Road Traffic and Vehicle Detection
  • Coverage4 lanes
  • Smart FunctionMultiple traffic data output, including lane line, traffic flow, speed, status, queue, time headway, space headway, space occupancy, time occupancy, etc. Supports real-time display of smart dynamic information.Average parking times detection
  • LPR Countries/RegionsMid-East: United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Cote d'Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg ,Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
  • Accuracy (Under recommended installation and lighting conditions)Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2%
  • Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
  • Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.
  • Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
  • General
  • Language7 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Thai
  • Storage Condition-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)
  • PowerAC 24 V ±20%, 1 A, max. 30 W, three-core terminal block
  • Dimension226 × 206.4 × 375.3 mm (8.9 × 8.1 × 14.8 inch)
  • Weight 3 kg
  • Operating Condition-30 °C to 70 °C (-22 °F to 158 °F) Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat, password protection, NTP time synchronization
  • Approval
  • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • SafetyUser name and password authentication, HTTPS digital certification
  • ProtectionIP66
  • OtherSupports hardware watchdog

Specification

Specification
Camera
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
Storage
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card card, up to 512GB
Lens
  • Focal Length & FOV12 mm, horizontal FOV 38.3°, vertical FOV 21.4°, diagonal FOV 44.3°
Illuminator
  • External Supplement LightContinuous LED supplement light
Radar
  • Detection Distance200 m coverage in range of the scene
  • Speed Range0 to 200 km/h
  • Max. Detectable TargetsAble to track and detect max. 128 targets
Video
  • Main Stream 50 Hz: 25 fps (2688 × 1520, 19080 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub-Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 702 × 576, 352 × 288)
  • Video Compression H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
Network
  • ProtocolsTCP/IP, HTTP, DNS, RTP, RTSP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
  • Web BrowserIE9 to IE11
  • Image SettingsWhite Balance (Auto)
  • Day/Night SwitchICR
  • Wide Dynamic Range (WDR)140 dB
  • Image Enhancement3D DNR
Interface
  • Video Output1-ch level output
  • Ethernet Interface2, RJ45 100M/1000M self-adaptive Ethernet interface
  • RS-4851
  • RS-2321
Road Traffic and Vehicle Detection
  • Coverage4 lanes
  • Smart FunctionMultiple traffic data output, including lane line, traffic flow, speed, status, queue, time headway, space headway, space occupancy, time occupancy, etc. Supports real-time display of smart dynamic information.Average parking times detection
  • LPR Countries/RegionsMid-East: United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Cote d'Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg ,Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
  • Accuracy (Under recommended installation and lighting conditions)Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2%
  • Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
  • Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.
  • Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
General
  • Language7 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Thai
  • Storage Condition-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)
  • PowerAC 24 V ±20%, 1 A, max. 30 W, three-core terminal block
  • Dimension226 × 206.4 × 375.3 mm (8.9 × 8.1 × 14.8 inch)
  • Weight 3 kg
  • Operating Condition-30 °C to 70 °C (-22 °F to 158 °F) Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat, password protection, NTP time synchronization
Approval
  • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • SafetyUser name and password authentication, HTTPS digital certification
  • ProtectionIP66
  • OtherSupports hardware watchdog
