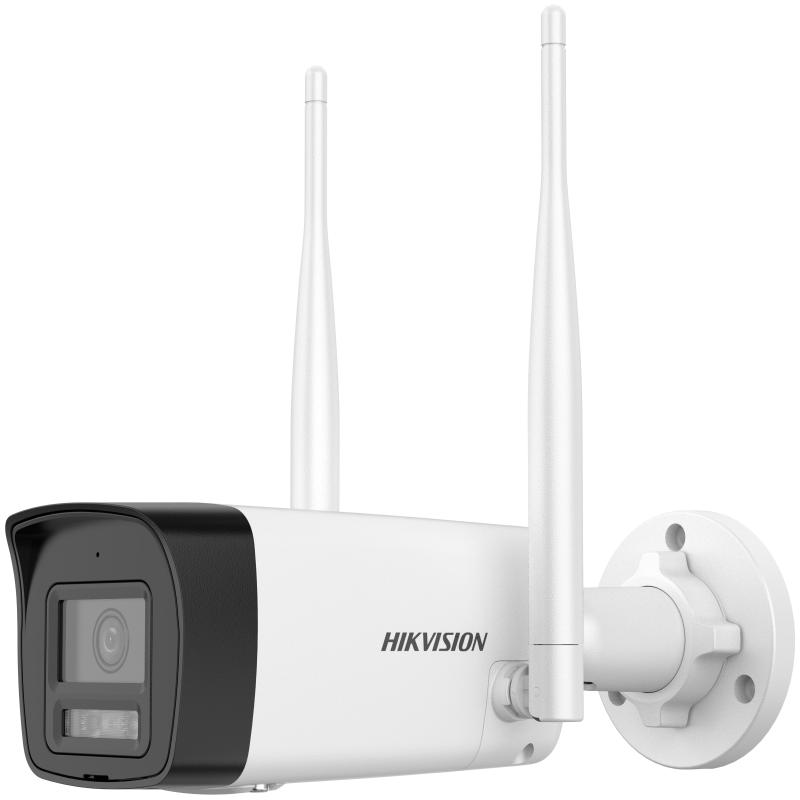

2 MP Outdoor Wi-Fi Fixed Bullet Network Camera

  • Support Wi-Fi 6
  • Good night-time performance with up to 30 m IR and 30 m white light
  • Built-in microphone and speaker, support two-way audio
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP66)
  • Support on-board storage up to 512 GB (SD card slot)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CV1023G2-LIDWF(2.8mm)(B)
DS-2CV1023G2-LIDWF(4mm)(B)
DS-2CV1023G2-LIDW(F)(B)
Data Sheet

Specification

  • كاميرا
  • Image Sensor 1/3" Progressive Scan CMOS
  • Max. Resolution 1920 × 1080
  • Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92° 6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56°
  • Aperture F2.0
  • Iris Type Fixed
  • Lens Mount M12
  • Depth of Field 2.8 mm: 0.8 m~∞ 4 mm: 1.1 m~∞ 6 mm: 2.3 m~∞
  • DORI
  • DORI 2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m
  • Illuminator
  • Supplement Light Type IR, White Light
  • IR Wavelength 850 nm
  • Supplement Light Range Up to 30 m
  • Smart Supplement Light Yes
  • Video
  • Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
  • Sub-Stream 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432)
  • Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Region of Interest (ROI) 1 fixed region for main stream
  • Audio
  • Audio Type Mono sound
  • Audio Compression G.711(ulaw)/ (AAC-LC)
  • Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate 8 kHz/16 kHz
  • Environment Noise Filtering Yes
  • Network
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Client iVMS-4200, Hik-Connect
  • Web Browser Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Wi-Fi
  • Frequency Range 2.4 GHz to 2.4835 GHz
  • Channel Bandwidth 20/40 MHz
  • Wi-Fi Protocol IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
  • Modulation 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • Transfer Rate 11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps,11ax: up to 114 Mbps
  • Image
  • Wide Dynamic Range (WDR) Digital WDR
  • SNR ≥ 52 dB
  • Day/Night Switch Day, Night, Auto, Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask 4 programmable polygon privacy masks
  • Interface
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone Yes
  • Built-in Speaker Yes
  • Reset Key Yes
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
  • Linkage Notify surveillance center, send email, trigger recording, trigger capture, audible warning
  • General
  • Power 12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
  • Material Plastic
  • Dimension 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
  • Package Dimension 300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
  • Weight Approx. 310 g (0.68 lb.)
  • With Package Weight Approx. 550 g (1.12 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language English, Ukrainian
  • General Function Heartbeat, anti-banding, mirror, password protection
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RF CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP66: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

كاميرا
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92° 6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56°
Aperture
F2.0
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 0.8 m~∞ 4 mm: 1.1 m~∞ 6 mm: 2.3 m~∞
DORI
DORI
2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m
Illuminator
Supplement Light Type
IR, White Light
IR Wavelength
850 nm
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
Sub-Stream
50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432)
Video Compression
Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Type
Mono sound
Audio Compression
G.711(ulaw)/ (AAC-LC)
Audio Bit Rate
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Wi-Fi
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz
Wi-Fi Protocol
IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Modulation
802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transfer Rate
11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps,11ax: up to 114 Mbps
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes
Built-in Speaker
Yes
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Linkage
Notify surveillance center, send email, trigger recording, trigger capture, audible warning
General
Power
12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Material
Plastic
Dimension
260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
Package Dimension
300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
Weight
Approx. 310 g (0.68 lb.)
With Package Weight
Approx. 550 g (1.12 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
