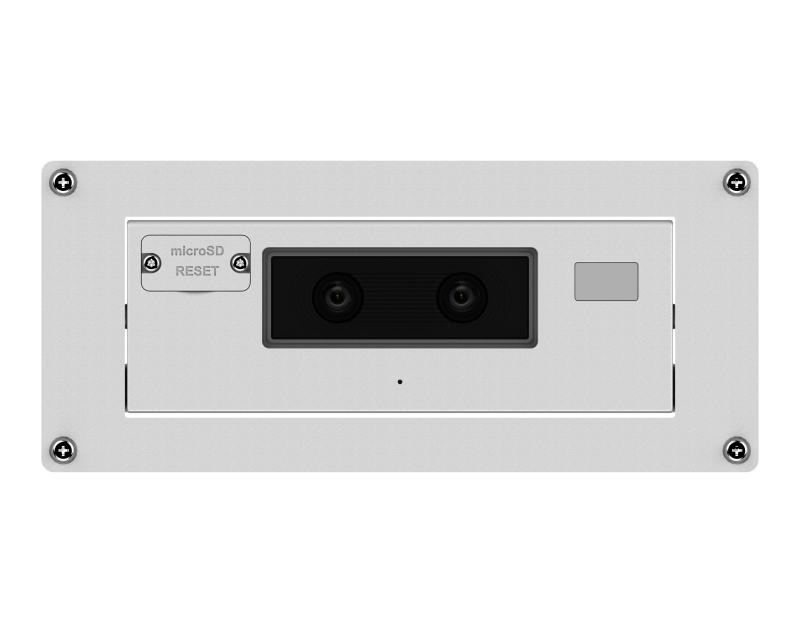

Mobile People Counting Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 105 dB WDR technology
  • Water and dust resistant (IP66) and vandal resistant(IK08)

View Less
View more
Sales Inquiry

Available models:

DS-2XM6825G0/C-IVS(2mm)
DS-2XM6825G0/C-IV(S)(M)(/ND)
EOL

Specification

  • كاميرا
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1200
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F2.25, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F2.25, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0°, Tilt: 0° to 25°, Rotate: 0°
  • Lens
  • Focal Length & FOV2 mm, horizontal FOV 108°, vertical FOV 84°, diagonal FOV 117.5°
  • Lens MountM12
  • ApertureF2.25
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 3 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50Hz: 25fps (1920 × 1200, 1440 × 900) 60Hz: 30fps (1920 × 1200, 1440 × 900)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 support
  • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Image EnhancementHLC, BLC, 3D DNR, defog
  • Interface
  • Video Output-IVS: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • Ethernet Interface-IVS: 1 RJ45 10M/100M Ethernet port -IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in MicrophoneYes
  • Audio-IVS: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
  • Alarm -S: 2 inputs, 2 outputs (max. 12 VDC, 30mA)
  • RS-485-IVS: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventAudio exception detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Deep Learning Function
  • People CountingCounts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • General
  • Power-IVSM: 24 VDC, 0.31 A, max. 7.4 W, 9 to 36 VDC, PoE (36 to 57 VDC, 802.3 af), Class 3, 0.22 A to 0.13 A, max. 7.8 W, reverse polarity protection, two-core molex -IVS: 24 VDC, 0.31 A, max. 7.4 W, 9 to 36 VDC, PoE (36 to 57 VDC, 802.3 af), Class 3, 0.22 A to 0.13 A, max. 7.8 W, reverse polarity protection, Ø5.5mm coaxial power plug -IVM/ND: PoE: 36 to 57 VDC, 802.3 af, Class 3, 0.22 A to 0.13 A, max: 7.8W, 4-core M12
  • Dimension230 mm × 100 mm × 50 mm (9.1" × 3.9" × 2" )
  • Package Dimension280 mm × 135 mm × 135 mm (11" × 5.3" × 5.3")
  • WeightApprox. 640 g (1.4 lb.)
  • With Package WeightApprox. 960 g (2.1 lb)
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KV (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIK08 (IEC 62262:2002), IP66 (IEC 60529-2013)
  • Automotive and RailwayEN 50155-2017; E-MARK, R118, EN45545, 50121-3-2
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

كاميرا
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1200
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F2.25, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F2.25, AGC ON)
Shutter Time
1/25 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0°, Tilt: 0° to 25°, Rotate: 0°
Lens
Focal Length & FOV
2 mm, horizontal FOV 108°, vertical FOV 84°, diagonal FOV 117.5°
Lens Mount
M12
Aperture
F2.25
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 3 m
IR Wavelength
850 nm
Video
Main Stream
50Hz: 25fps (1920 × 1200, 1440 × 900) 60Hz: 30fps (1920 × 1200, 1440 × 900)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.265 and H.264 support
Region of Interest (ROI)
4 fixed regions for main stream and sub-stream
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View
Up to 20 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
User/Host
Up to 32 users 3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
Network Storage
Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect
Web Browser
IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
Image Settings
Saturation, brightness, contrast, sharpness are adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by alarm input (-S)
Image Enhancement
HLC, BLC, 3D DNR, defog
Interface
Video Output
-IVS: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
Ethernet Interface
-IVS: 1 RJ45 10M/100M Ethernet port -IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone
Yes
Audio
-IVS: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
Alarm
-S: 2 inputs, 2 outputs (max. 12 VDC, 30mA)
RS-485
-IVS: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Audio exception detection, defocus detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Deep Learning Function
People Counting
Counts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
General
Power
-IVSM: 24 VDC, 0.31 A, max. 7.4 W, 9 to 36 VDC, PoE (36 to 57 VDC, 802.3 af), Class 3, 0.22 A to 0.13 A, max. 7.8 W, reverse polarity protection, two-core molex -IVS: 24 VDC, 0.31 A, max. 7.4 W, 9 to 36 VDC, PoE (36 to 57 VDC, 802.3 af), Class 3, 0.22 A to 0.13 A, max. 7.8 W, reverse polarity protection, Ø5.5mm coaxial power plug -IVM/ND: PoE: 36 to 57 VDC, 802.3 af, Class 3, 0.22 A to 0.13 A, max: 7.8W, 4-core M12
Dimension
230 mm × 100 mm × 50 mm (9.1" × 3.9" × 2" )
Package Dimension
280 mm × 135 mm × 135 mm (11" × 5.3" × 5.3")
Weight
Approx. 640 g (1.4 lb.)
With Package Weight
Approx. 960 g (2.1 lb)
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Language
32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KV (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IK08 (IEC 62262:2002), IP66 (IEC 60529-2013)
Automotive and Railway
EN 50155-2017; E-MARK, R118, EN45545, 50121-3-2
