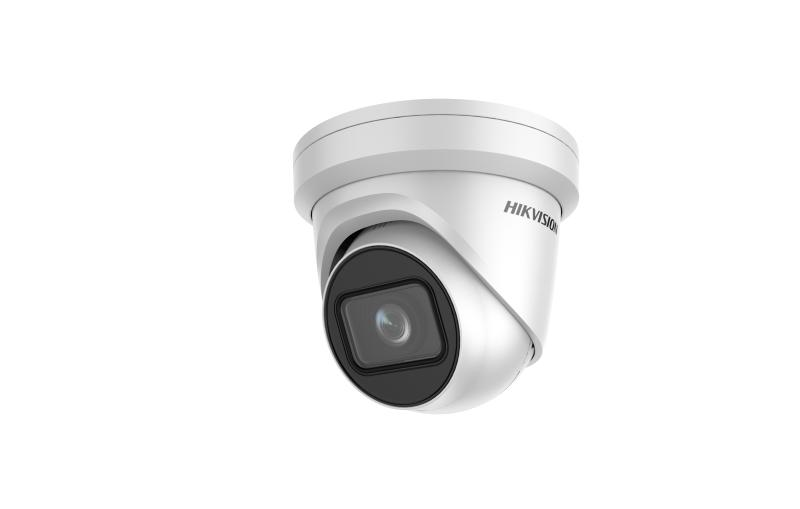

4K Outdoor WDR Motorized Varifocal Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials
View Less
View more

Available models:

DS-2CD2H83G1-IZ(2.8-12mm)
Specification
  • كاميرا
  • Image Sensor 1/2.5" Progressive Scan CMOS
  • Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Auto
  • Lens Type 2.8 to 12 mm,Motorized
  • FOV Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
  • Aperture F1.6
  • Lens Mount Φ14
  • Aperture Type Fixed
  • Illuminator
  • IR Range Up to 30 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 3840 × 2160
  • Main Stream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding support
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
  • Target Cropping No
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, face detection
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.92 A, max. 11 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W
  • Camera Dimension Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0")
  • Camera Weight Camera: Approx. 1.20 kg (2.65 lb.);With Package: Approx. 1.42 kg (3.13 lb.)
  • Approval
  • Protection IP67,IK10

Specification

For better user experience, we highly recommend you to update your device to the latest firmware asap.
