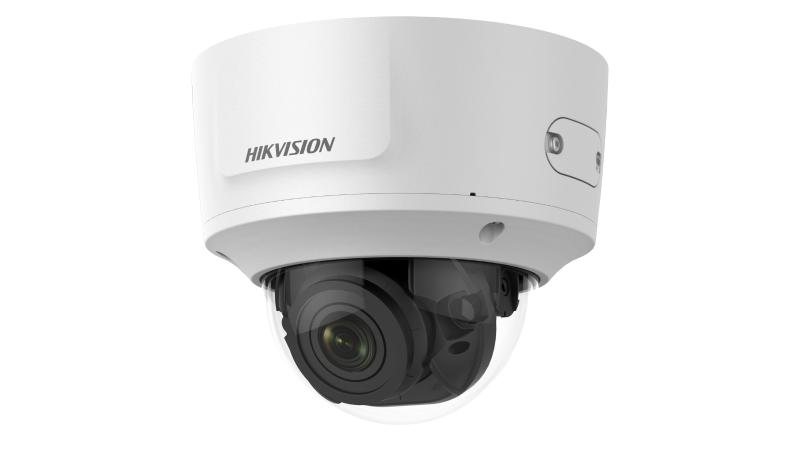

DS-2CD2725FHWD-IZS

2 MP High Frame Rate Varifocal Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • High frame rate video to illustrate smooth movement
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials.

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD2725FHWD-IZS(2.8-12mm)
DS-2CD2725FHWD-IZS
Data Sheet

Specification

  • كاميرا
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Auto
  • Lens Type 2.8 to 12 mm，Motorized
  • FOV Horizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
  • Aperture F1.4
  • Lens Mount Φ14
  • Illuminator
  • IR Range Up to 30 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio Compression G722.1/G711/G726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
