Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS
Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
mirror;heart;pixel counter;password protection;privacy mask;password reset via e-mail;flash log;anti-flicker
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ±20%, reverse polarity protection; two-core terminal block; 24 VAC±20%; PoE (802.3at, type 2, class 4)
Power Consumption and Current
With extra load: 12 VDC, 0.95 A, max. 11.4 W; 24 VAC, 0.8 A, max. 11.4 W; PoE (802.3at, 42.5 V to 57 V), 0.38 A to 0.24 A, max. 13.6 W
Without extra load: 12 VDC, 0.75 A, max. 9 W; 24 VAC, 0.63 A, max. 9 W; PoE (802.3at, 42.5 V to 57 V), 0.27 A to 0.20 A, max. 11.2 W
"with extra load" means that an extra device is connected to and powered by the camera.
Power Interface
two-core terminal block

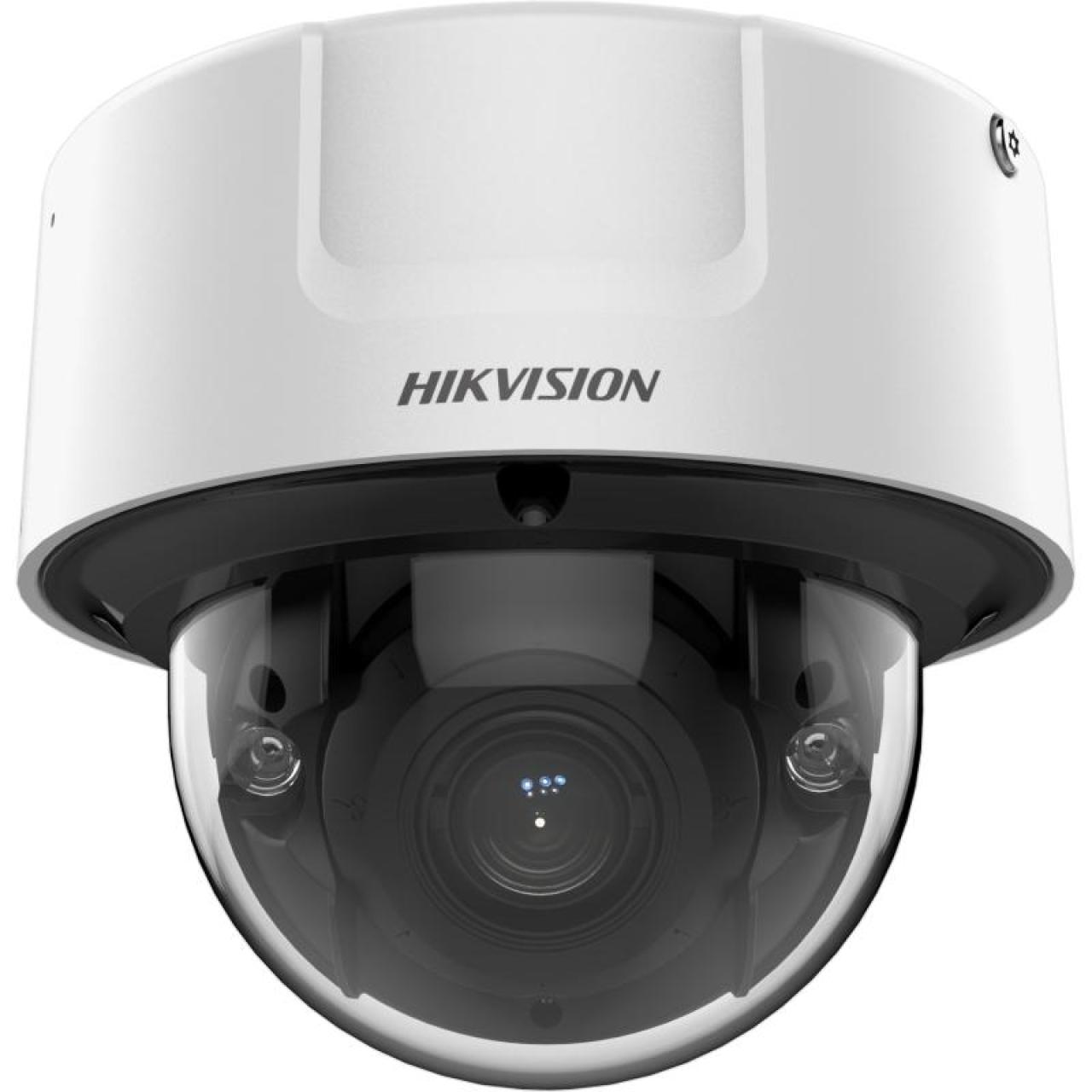

Camera Dimension
Camera: Φ140 × 123 mm (Φ5.5″ × 4.8″)
Package Dimension
With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
Camera Weight
Camera: approx. 940 g (2.1 lb.)
With Package Weight
With Package: approx. 1410 g (3.1 lb.)
