EOL

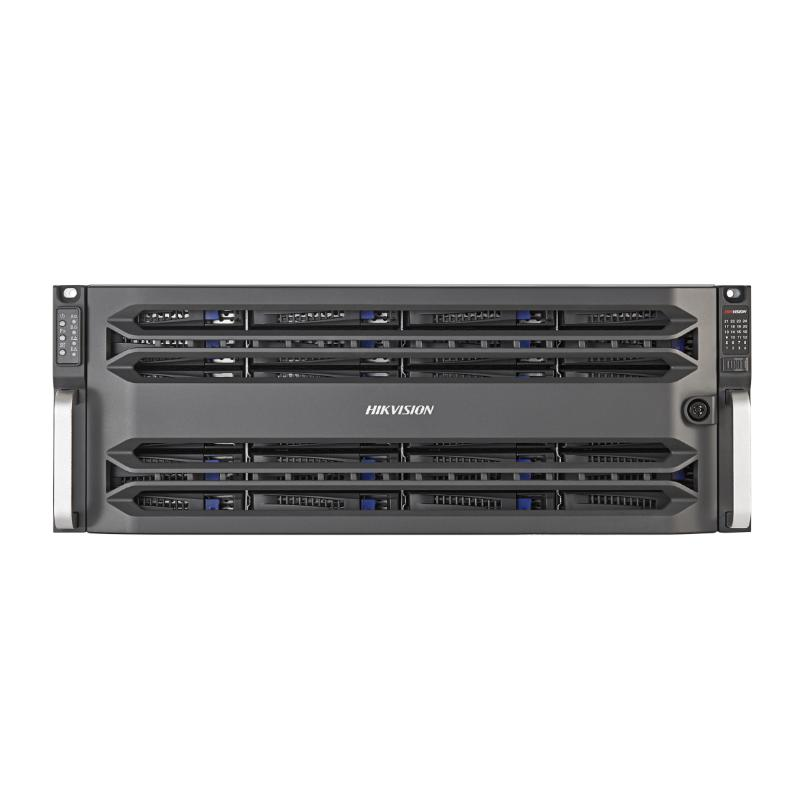

24-slot SAS Enclosure (dual controller)

  • Dual controller, enterprise-class SAS enclosure for expanding storage while reducing costs
  • Supports hot swap HDD, redundant power supply, redundant fan
  • Mini SAS 3.0 able to transmit four times faster than 12G
  • Supports cascading expansion and SAS HDD interfaces
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-AJ7824D
DS-AJ7824D
EOL
Data Sheet

Specification

  • External interface
  • MiniSAS interface2(12Gbps)
  • Controller Parameters1 (12Gbps)
  • Storage
  • HDD slot24
  • Interface/capacitySAS/1TB,2TB,3TB,4TB,6TB,8TB,10TB,12TB,14TB,16TB
  • Hot-swappingSupported
  • Hardware
  • StructureDual controller
  • General
  • Power supplyRedundant
  • Chassis4U Chassis
  • Applicable ModelsDS-A82024D
  • Consumption(with HDDs)Rated≤ 550 W
  • Environment temperatureWorking:5°C ~ 40°C (41°F ~ 104°F)；Storage:-20°C ~ +70°C (-4°F ~ +158°F)
  • HumidityWorking；20% ~ 80% (With no icing and condensation)；Storage:5% ~ 90%RH (With no icing and condensation)
  • Dimensions(W × D × H)447 × 172 × 525mm
  • Weight (without HDDs)40 kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

External interface
MiniSAS interface
2(12Gbps)
Controller Parameters
1 (12Gbps)
Storage
HDD slot
24
Interface/capacity
SAS/1TB,2TB,3TB,4TB,6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping
Supported
Hardware
Structure
Dual controller
General
Power supply
Redundant
Chassis
4U Chassis
Applicable Models
DS-A82024D
Consumption(with HDDs)
Rated≤ 550 W
Environment temperature
Working:5°C ~ 40°C (41°F ~ 104°F)；Storage:-20°C ~ +70°C (-4°F ~ +158°F)
Humidity
Working；20% ~ 80% (With no icing and condensation)；Storage:5% ~ 90%RH (With no icing and condensation)
Dimensions(W × D × H)
447 × 172 × 525mm
Weight (without HDDs)
40 kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
External interface
  • MiniSAS interface2(12Gbps)
  • Controller Parameters1 (12Gbps)
Storage
  • HDD slot24
  • Interface/capacitySAS/1TB,2TB,3TB,4TB,6TB,8TB,10TB,12TB,14TB,16TB
  • Hot-swappingSupported
Hardware
  • StructureDual controller
General
  • Power supplyRedundant
  • Chassis4U Chassis
  • Applicable ModelsDS-A82024D
  • Consumption(with HDDs)Rated≤ 550 W
  • Environment temperatureWorking:5°C ~ 40°C (41°F ~ 104°F)；Storage:-20°C ~ +70°C (-4°F ~ +158°F)
  • HumidityWorking；20% ~ 80% (With no icing and condensation)；Storage:5% ~ 90%RH (With no icing and condensation)
  • Dimensions(W × D × H)447 × 172 × 525mm
  • Weight (without HDDs)40 kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
